Beschreibung
Silikon Kühlerschlauch zum Einsatz z.B. in Fahrzeugen, Booten, im Maschinenbau und mehr.
Schlauchseele: Silikon, blau, glatt
Einlagen: Polyestereinlagen
Schlauchdecke: Silikon, blau
Temperaturbereich: -60°C bis +180°C
Ausführung: Bogen
Schenkelmaß: 100 mm, 180° Winkel

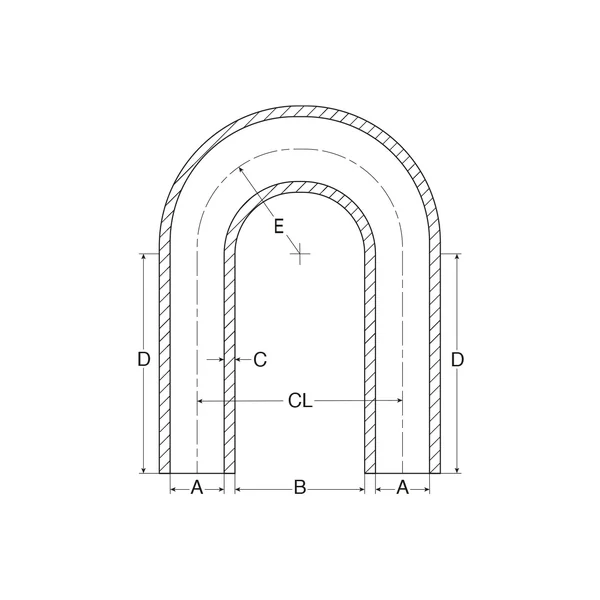

Technische Daten
| Innen-Ø (A) mm |
Außen-Ø mm |
B mm |
D mm |
E mm |
CL* mm |
Wandstärke (C) mm |
Betriebsdruck bar bei 20°C |
Einlagen |
| 10,0 | 18,0 | 26,0 | 100,0 | 22,0 | 44,0 | 4,0 | 10,0 | 3 |
| 16,0 | 24,0 | 22,0 | 100,0 | 23,0 | 46,0 | 4,0 | 8,0 | 3 |
| 19,0 | 27,0 | 24,0 | 100,0 | 25,5 | 51,0 | 4,0 | 7,5 | 3 |
| 22,0 | 30,0 | 82,0 | 100,0 | 56,0 | 112,0 | 4,0 | 6,5 | 3 |
| 25,0 | 33,0 | 66,0 | 100,0 | 49,5 | 99,0 | 4,0 | 6,0 | 3 |
| 28,0 | 36,0 | 14,0 | 100,0 | 27,0 | 112,0 | 4,0 | 6,0 | 3 |
| 32,0 | 40,0 | 22,0 | 100,0 | 31,0 | 62,0 | 4,0 | 5,0 | 3 |
| 38,0 | 46,0 | 63,0 | 100,0 | 54,5 | 109,0 | 4,0 | 4,5 | 3 |
| 51,0 | 61,0 | 39,0 | 100,0 | 49,0 | 100,0 | 5,0 | 4,0 | 4 |
| 54,0 | 64,0 | 45,0 | 100,0 | 53,5 | 109,0 | 5,0 | 4,0 | 4 |
| 57,0 | 67,0 | 45,0 | 100,0 | 55,0 | 112,0 | 5,0 | 4,0 | 4 |
| 60,0 | 70,0 | 52,0 | 100,0 | 60,0 | 122,0 | 5,0 | 4,0 | 4 |
| 64,0 | 74,0 | 77,0 | 100,0 | 74,5 | 151,0 | 5,0 | 4,0 | 4 |
* gemessen von Innen-Ø Mitte zu Innen-Ø Mitte
